Name: DCB-B160-500 Low Noise High Flow Gear Pump(Round)
Brand: Taiye

Common Applications

Oil Transfer Pump Hydraulic Machinery Construction Machinery Thin Oil Station Artificial Board Machinery Plywood Machinery Washing Equipment Rubber Machinery Oil Station Transfer Oilfield Transfer Hydraulic System Power Source

etc...

Do not select by model or dimensions alone. Confirm the fluid and temperature, flow and pressure, speed and rotation, mounting dimensions, and ports.

View Gear Pump Selection Guide Contact an Engineer

Introduction

This series of gear pump with spur gears and bevel gear two, a gear, and its low noise, large flow, pulse small, stable operation. Widely used in wood, plywood machinery, washing equipment, rubber and plastic machinery, thin oil station below the hydraulic system of 2.5MPa, can also be used for large flow pump station, oil light oil. The corrosionprevention treatment, can flow water, as a water pump

Model Diagram

DCB-B160-500 Low Noise High Flow Gear Pump(Round)Model Diagram

Technical Parameters

DCB-B160-500 Low Noise High Flow Gear Pump(Round)Technical Parameters

Dimensions

DCB-B160-500 Low Noise High Flow Gear Pump(Round)Dimensions

Specifications

DCB-B160-500 Low Noise High Flow Gear Pump(Round)Specifications

Description

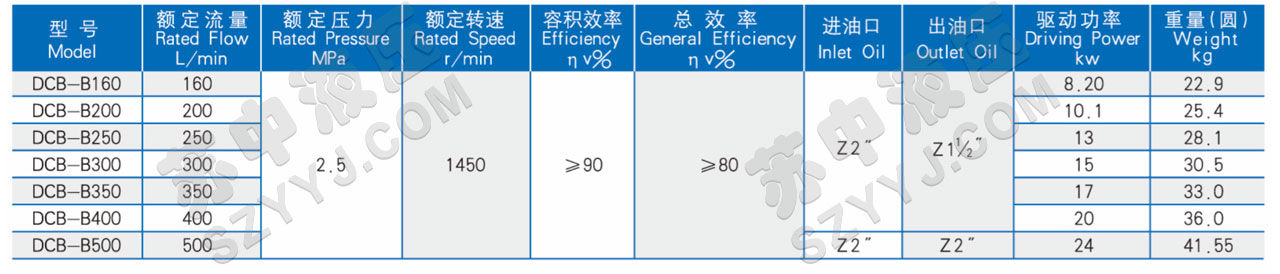

型号	额定流量 L/min	额定压力 MPa	额定转速 r/min	容积效率 ηv%	总效率 ηt%	进油口	出油口	驱动功率 kw
DCB-B160	160	2.5	1450	≥90	≥80	Z2"	Z1¹/₂"	8.2
DCB-B200	200							10.1
DCB-B250	250							13
DCB-B300	300							15
DCB-B350	350							17
DCB-B400	400							20
DCB-B500	500					Z2"	Z2"	24
